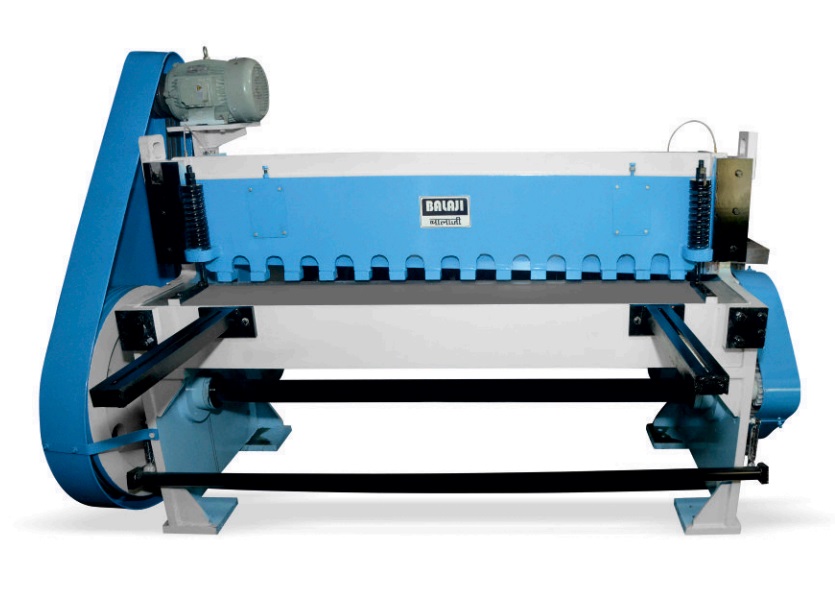

Under Crank Shearing Machine

"BALAJI" Power Operated Guillotine Shearing machines are sturdily constructed and are designed for accuracy and dependability.

SIDE FRAMES

Are of solid steel plates designed for maximum rigidity to eliminate deflection and to withstand continuous high speed performance at full capacity.

BED OR TABLE

Is of closed box type construction, which forms a rigid backbone for the shear and a solid backing for the lower knife. additional ride under the table adds to its strength.

CUTTER BEAM

The ram is of solid steel plates, accurately machined. The ram brace is bolted to the ram to adjust the camber which may result after long use. The ram move in taper guides, this facilities makes. The adjustment of clearance between Ram & table easien for cutting various thicknesses. Thus giving smooth shearing action.

CRANKSHAFT

Is of forged carbon steel, accurately machined and runs in gun metal bushes, Flywheel Shaft runs in ball bearings.

HOLD DOWN

Steel fabricated and is used for clamping the plate securely to the table while being cut. Spring loaded mechanical hold down is provided in all machines. how ever, in machines of 6mm capacity & above, pressure arms fitted to the cross support, are provided for additional grip, before cutting.

BLADES

Four edges Hardened & Grinded D, Steel blades are provided.

ROLLING KEY CLUTCH

Made of alloy steel for positive engagement and continuous operation, having three key way in the EN-8 insert.

BRAKE

Constant spring loaded adjustable brake is provided.

GAUGES

Rigid and accurate construction of back guage provides consistent widths of sheets to be cut.
