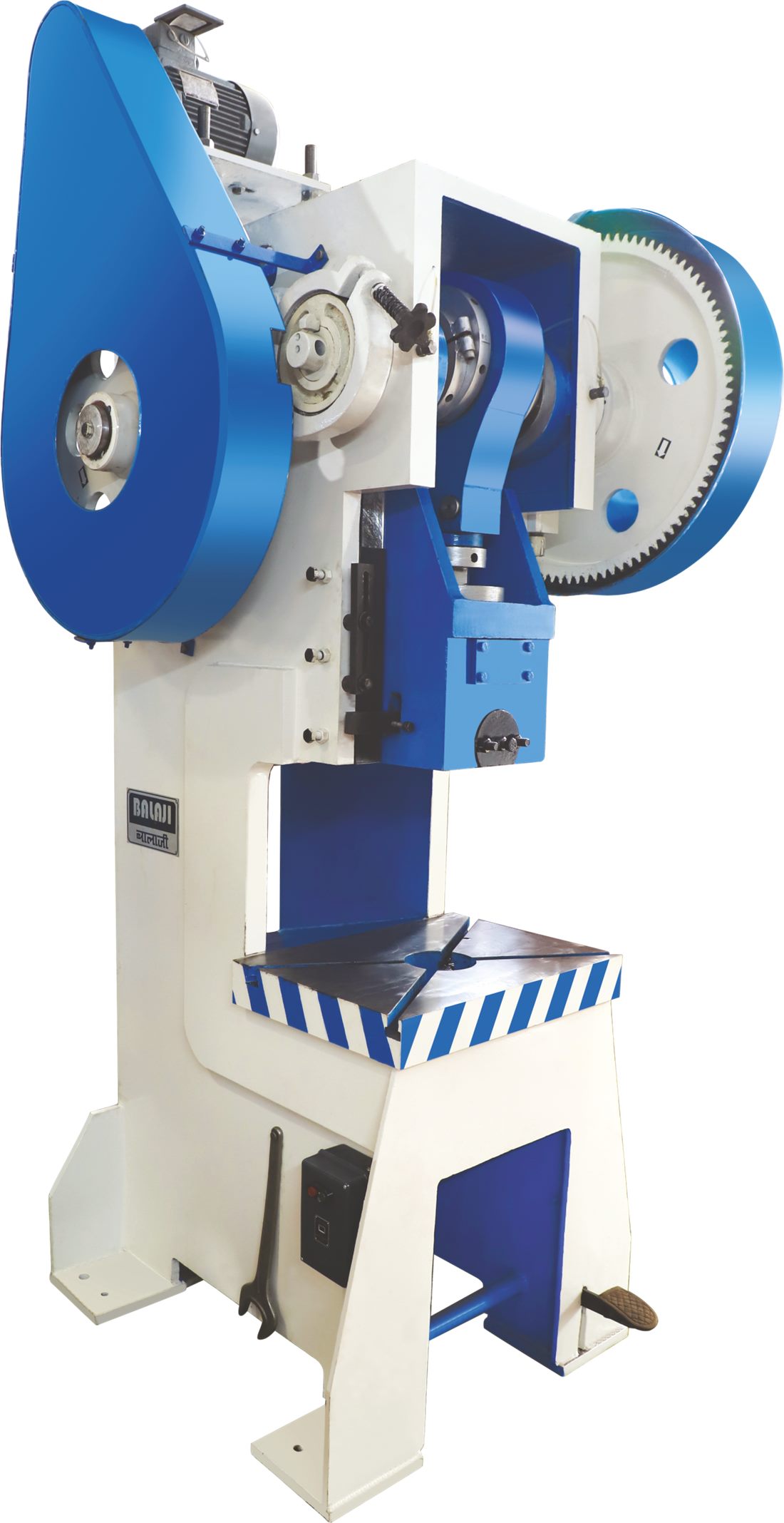

SBB STANDARD SERIES PRESSES
- Home
- Our Products
- SBB STANDARD SERIES PRESSES
| Property | Value |
|---|---|
| Crank Shaft Dia | Ø102mm |
| Stroke Fixed | 80mm |
| Adj. Stroke Length | 5-80mm |
| Hole In Ram (Dia x Depth) | 50x65mm |
| Hole In Bed | 160mm |
| Bed Area (A x B) | 650x475mm |
| Shut Height | 335mm |
| S.P.M | 50 |
| Center To Back (E) | 255mm |
| Distance Between Bed To Ram(D-1) | 405mm |
| Floor To Top Of Bed (D-2) | 900mm |
| Total (H x L x W) | 2580x1440x1420mm |
| Electric Motor | 5HP/1440 |
| Weight Net (Approx) | 2550 kg |
