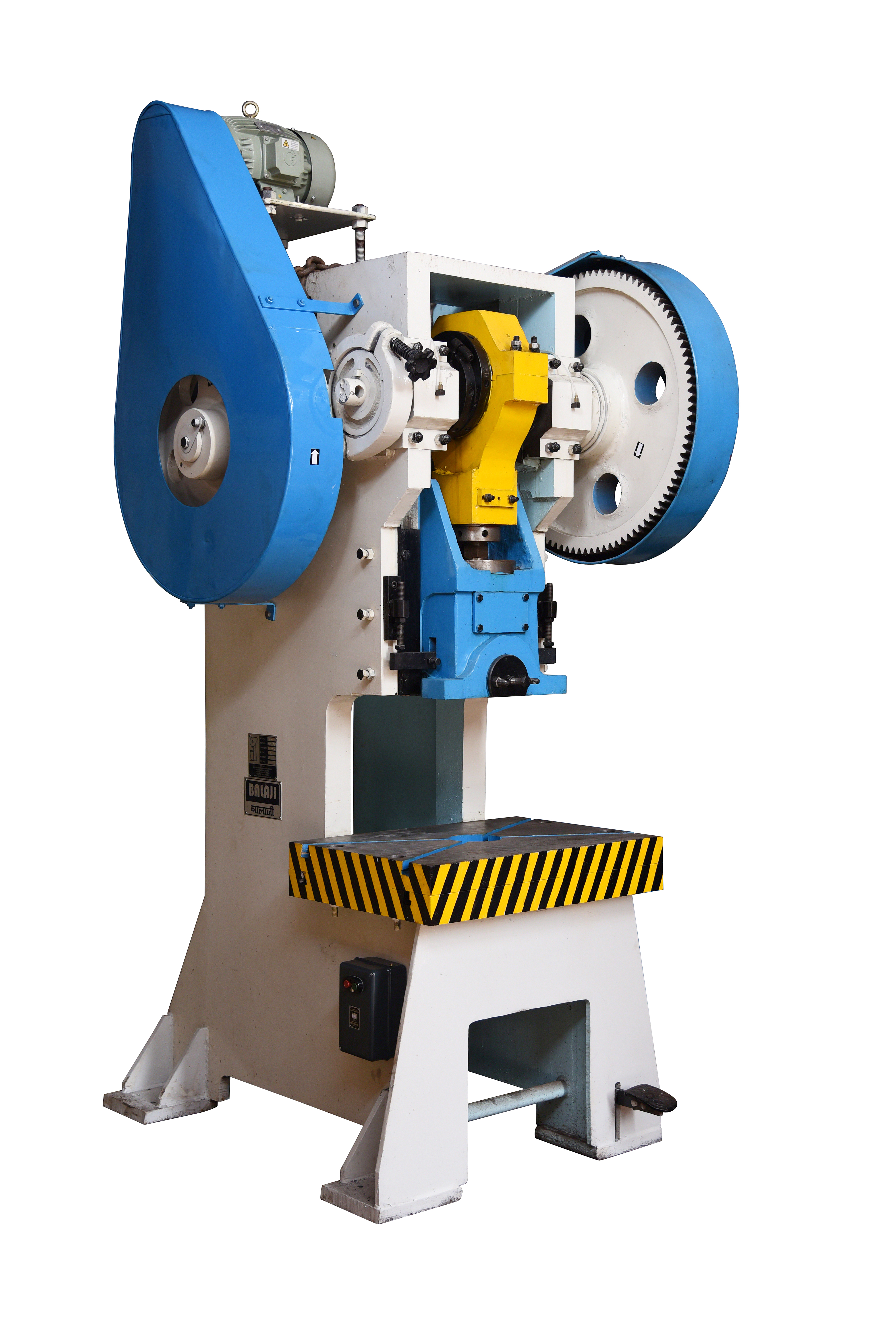

BSP EXTRA HEAVY DUTY SERIES PRESSES
- Home
- Our Products
- BSP EXTRA HEAVY DUTY SERIES PRESSES
| Property | Value |
|---|---|
| Crank Shaft Dia | Ø110mm |
| Stroke Fixed | 100mm |
| Adj. Stroke Length | 5-100mm |
| Hole In Ram (Dia x Depth) | 50x65mm |
| Hole In Bed | 240mm |
| Hole In Bolster | 125mm |
| Bed Area (A x B) | 780x530mm |
| Shut Height | 335mm |
| S.P.M | 50 |
| Center To Back (E) | 255mm |
| Distance Between Bed To Ram(D-1) | 435mm |
| Floor To Top of Bed (D-2) | 900mm |
| Total (H x L x W) | 2600x1120x1400mm |
| Electric Motor | 5HP/1440 |
| Weight Net (Approx) | 3300 kg |
