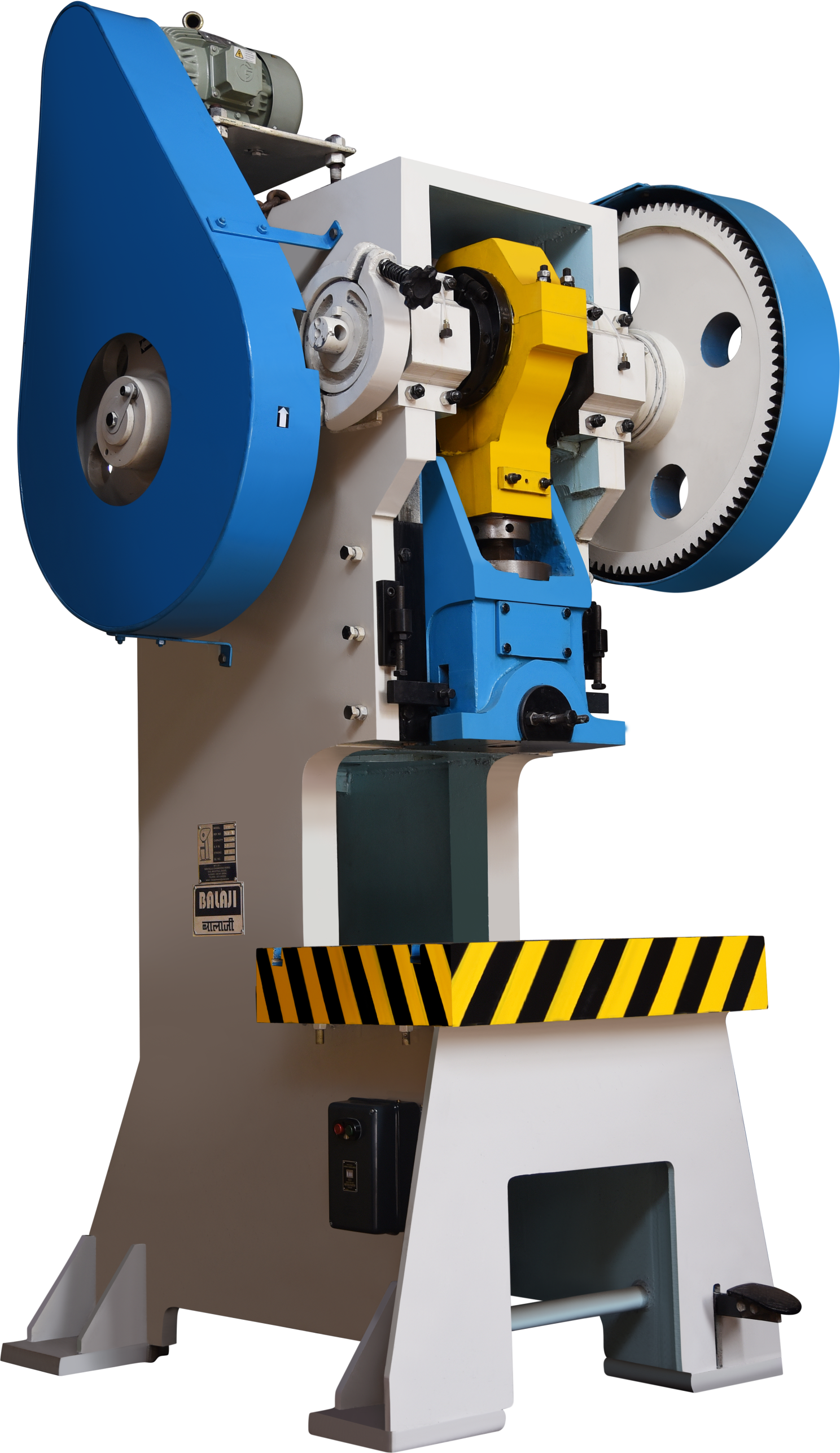

BSP EXTRA HEAVY DUTY SERIES PRESSES
- Home
- Our Products
- BSP EXTRA HEAVY DUTY SERIES PRESSES
| Property | Value |
|---|---|
| Crank Shaft Dia | Ø150mm |
| Stroke Fixed | 150mm |
| Adj. Stroke Length | 5-150mm |
| Hole In Ram (Dia x Depth) | 63x75mm |
| Hole In Bed | 350mm |
| Hole In Bolster | 160mm |
| Bed Area (A x B) | 1000x665mm |
| Shut Height | 420mm |
| S.P.M | 40 |
| Center To Back (E) | 315mm |
| Distance Between Bed To Ram(D-1) | 570mm |
| Floor To Top of Bed (D-2) | 900mm |
| Total (H x L x W) | 2950x1350x1650mm |
| Electric Motor | 10HP/1440 |
| Weight Net (Approx) | 6500 kg |
