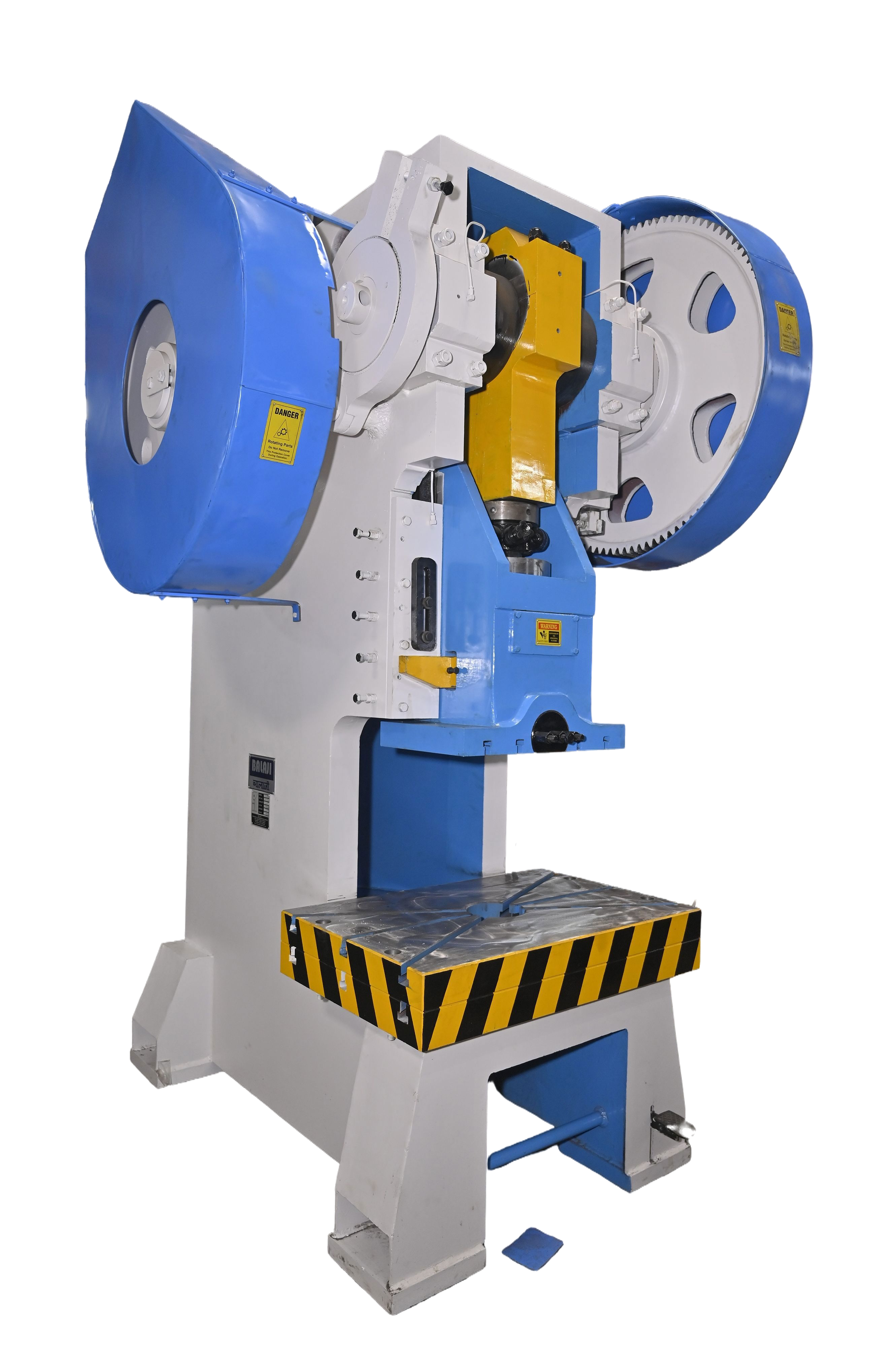

BSP EXTRA HEAVY DUTY SERIES PRESSES
- Home
- Our Products
- BSP EXTRA HEAVY DUTY SERIES PRESSES
| Property | Value |
|---|---|
| Crank Shaft Dia | Ø200mm |
| Stroke Fixed | 150mm |
| Adj. Stroke Length | 10-150mm |
| Hole In Ram (Dia x Depth) | T-Slot Plate |
| Hole In Bed | 360mm |
| Hole In Bolster | 165mm |
| Bed Area (A x B) | 1100x720mm |
| Shut Height | 450mm |
| S.P.M | 30 |
| Center To Back (E) | 320mm |
| Distance Between Bed To Ram(D-1) | 650mm |
| Floor To Top of Bed (D-2) | 900mm |
| Total (H x L x W) | 3200x1650x1950mm |
| Electric Motor | 20HP/1440 |
| Weight Net (Approx) | 11500 kg |
