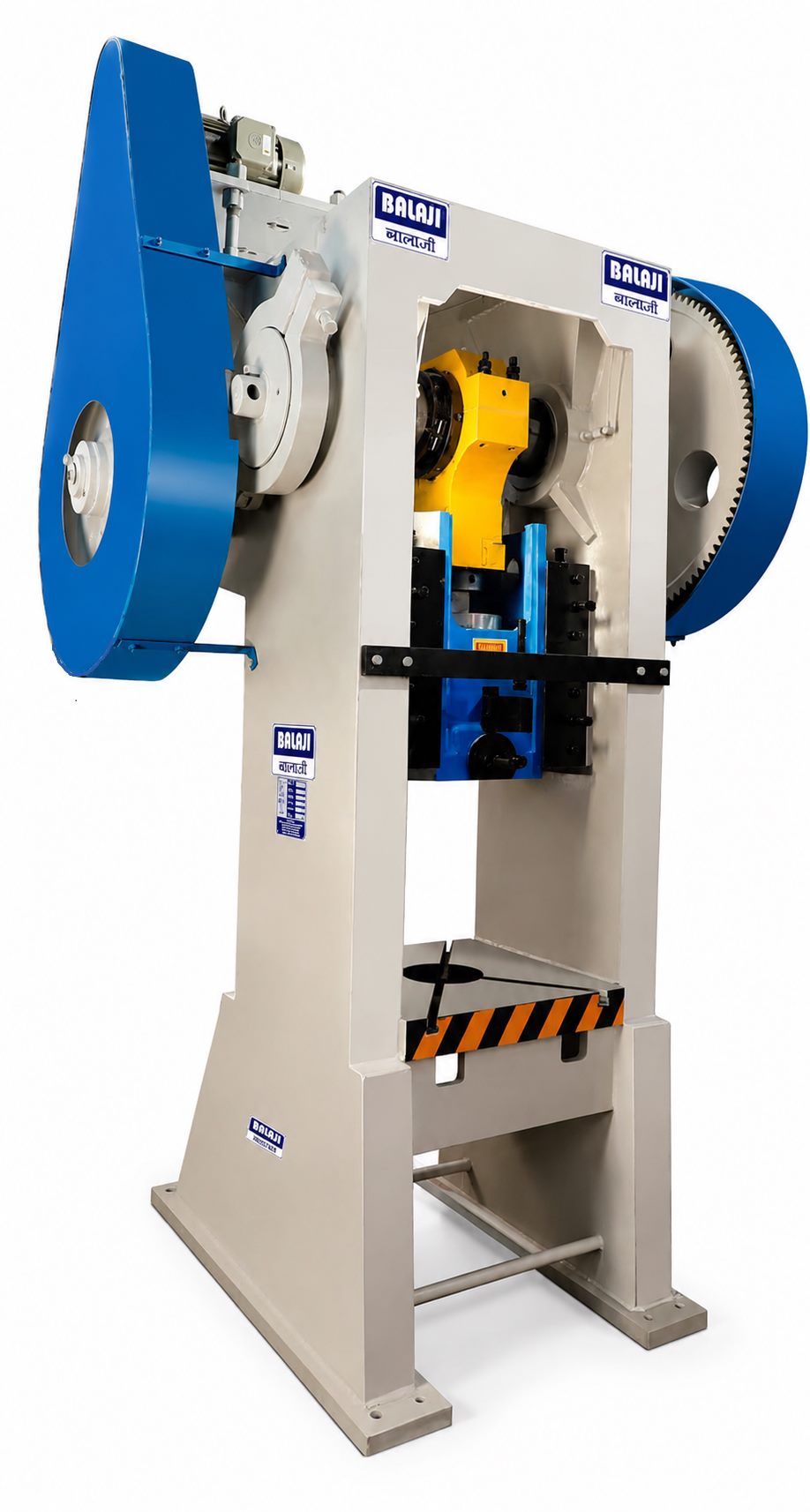

BSS H TTPE EXTRA HEAVY DUTY SERIES PRESSES
- Home
- Our Products
- BSS H TTPE EXTRA HEAVY DUTY SERIES PRESSES
| Property | Value |
|---|---|
| Capacity KN | 500mm |
| Stroke Fixed | 80mm |
| Variable Stroke (Optional) | 10-80mm |
| Size of Bolster (LRxFB) | 470x470mm |
| Opening In Bolster | 125mm |
| Opening In Bed | 175mm |
| Distance Between Bed to RAM (As Per Stroke Fixed) | 330mm |
| Shut Height (Adj. Up Stroke Down) | 250mm |
| S.P.M | 50 |
| Floor To Top Of Bolster | 800mm |
| Electric Motor | 5HP/1440 |
| Weight Net (Approx) | 2300 kg |
