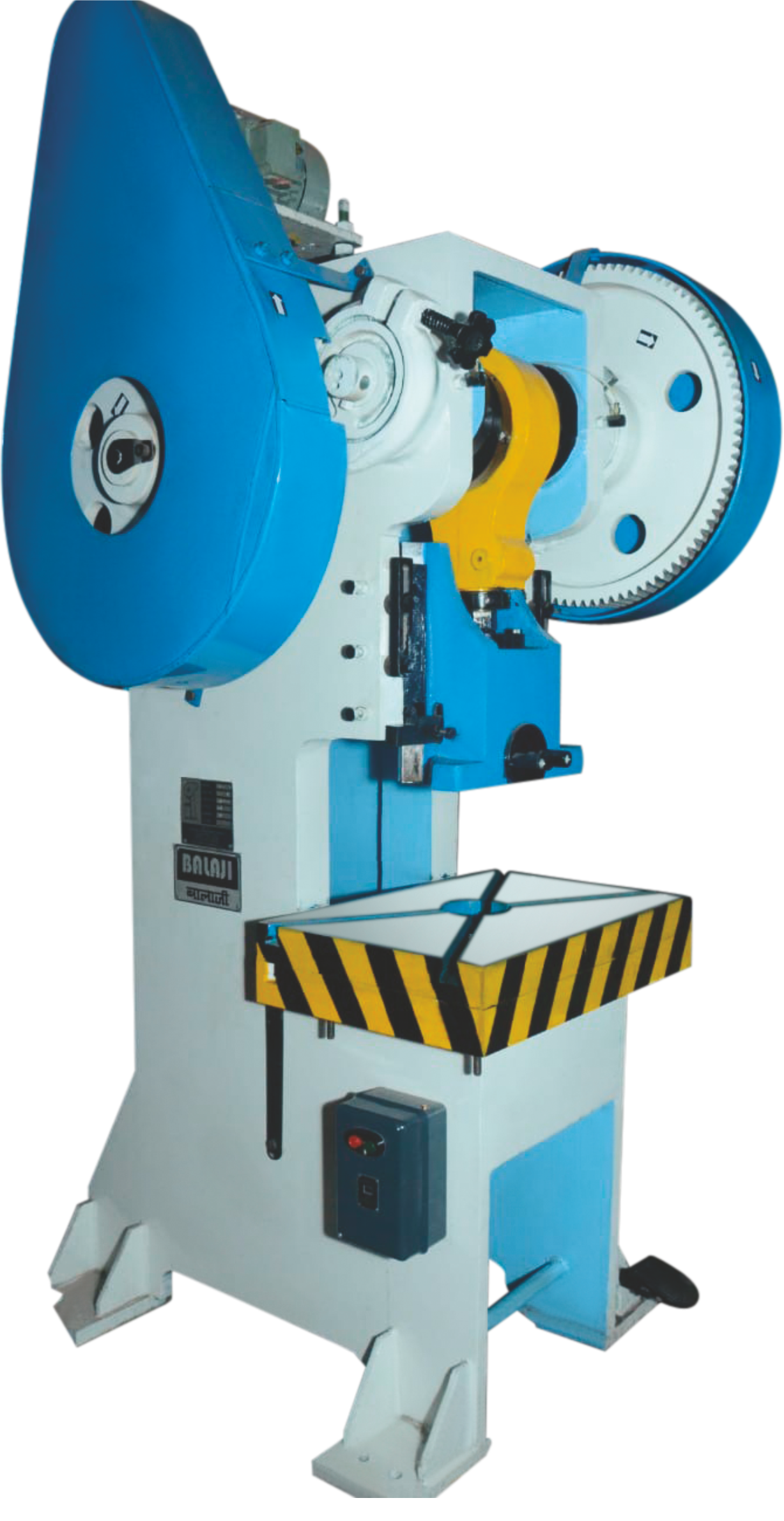

BSP EXTRA HEAVY DUTY SERIES PRESSES
- Home
- Our Products
- BSP EXTRA HEAVY DUTY SERIES PRESSES
| Property | Value |
|---|---|
| Crank Shaft Dia | Ø87mm |
| Stroke Fixed | 70mm |
| Adj. Stroke Length | 5-70mm |
| Hole In Ram (Dia x Depth) | 44x50mm |
| Hole In Bed | 190mm |
| Hole In Bolster | 100mm |
| Bed Area (A x B) | 630x430mm |
| Shut Height | 285mm |
| S.P.M | 60 |
| Center To Back (E) | 200mm |
| Distance Between Bed To Ram(D-1) | 355mm |
| Floor To Top of Bed (D-2) | 800mm |
| Total (H x L x W) | 2500x1100x1350mm |
| Electric Motor | 3HP/1440 |
| Weight Net (Approx) | 1900 kg |
