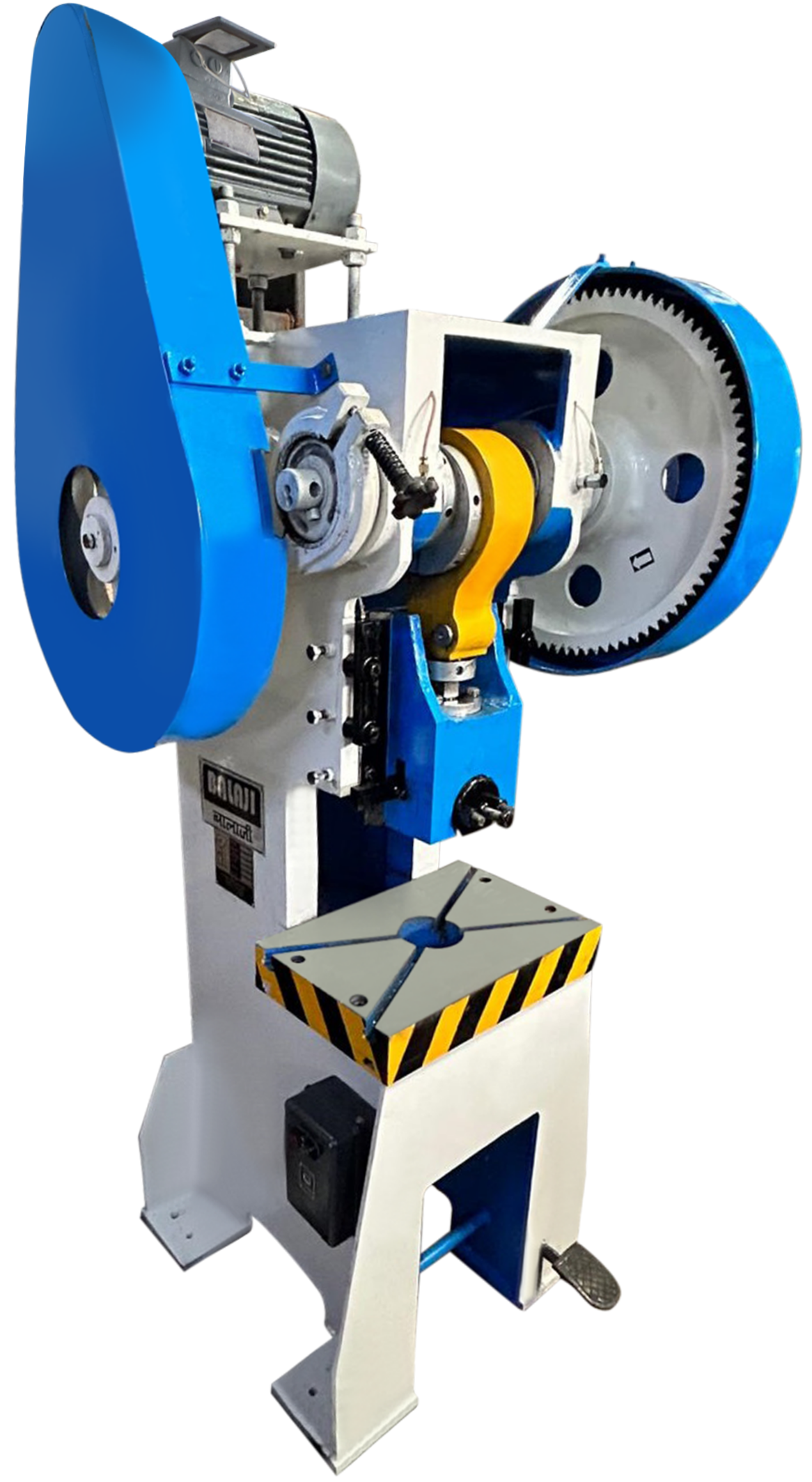

BSP EXTRA HEAVY DUTY SERIES PRESSES
- Home
- Our Products
- BSP EXTRA HEAVY DUTY SERIES PRESSES
| Property | Value |
|---|---|
| Crank Shaft Dia | Ø75mm |
| Stroke Fixed | 60mm |
| Adj. Stroke Length | 5-60mm |
| Hole In Ram (Dia x Depth) | 32x45mm |
| Hole In Bed | 140mm |
| Hole In Bolster | 90mm |
| Bed Area (A x B) | 540x365mm |
| Shut Height | 240mm |
| S.P.M | 70 |
| Center To Back (E) | 160mm |
| Distance Between Bed To Ram(D-1) | 300mm |
| Floor To Top of Bed (D-2) | 800mm |
| Total (H x L x W) | 1900x810x1120mm |
| Electric Motor | 2HP/1440 |
| Weight Net (Approx) | 1250 kg |
