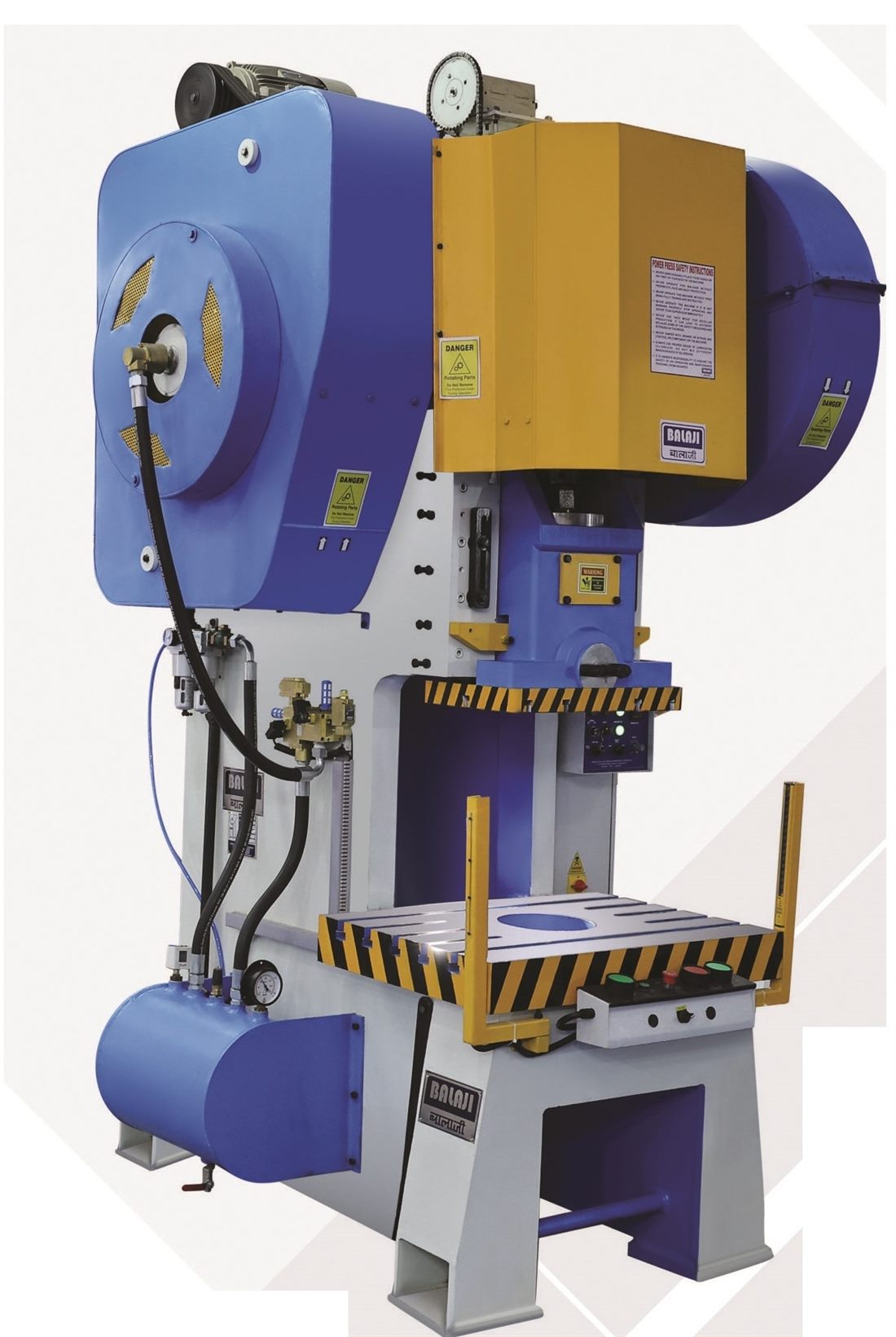

NEXUS SERIES – C TYPE PNEUMATIC CLUTCH POWER PRESS
Capacity Range – 25 Ton to 250 Ton
Balaji Make Heavy Duty Steel Fabricated Geared 'C' / 'H' Type Frame Pneumatic Clutch Power Press Fitted With Standard Make Electric Motor, Panel, Pneumatic Clutch And Brake With 'Start' & 'Off' Option, Clutch Can Be Set To 'Inching', 'Continues', 'Single Stroke' & Reversing Option With Two Palm Buttons Or By Foot Switch Complete With Vee Belts, Flexible Pipe Wiring, Flywheel And Gear Guards, Ball Screw Spanner Tommey Bar, As Per Following Specifications.
More Rigid & Accurate, Even More Safety Features — the power presses that raise standards of precision in the forming industry.
| Standard Accessories |
| Air Clutch |
| Air Tank |
| FRL Unit |
| Dual Solenoid Valve |
| Router Seal |
| Rotary Cam Limit Switch |
| Electric Panel |
| Electric Panel With Remote Two Hand Control System & Foot Switch |
| Complete With PVC Channel Wiring |
| Auto Lubrication Device |
| Lubrication Pump With Low Level Indicator & Buzzer |
| Low Air Pressure Reservoir With Indicator & Buzzer |
| Over Load Electrical Safety With Indicator & Buzzer |
| Optional Accessories |
| Motorized Shut Height With Digital Indicator |
| Hydraulic Overload Safety |
| Pneumatic Die Cushion |
| Photo Electric Safety Curtains |
| PLC Control With HMI Display |
| Variable Frequency Speed Drive |
| Inclinable Mechanisms |
Products in NEXUS SERIES Category
Technical Specifications
| Specification |
NX-25 |
NX-35 |
NX-60 |
NX-80 |
NX-110 |
NX-160 |
NX-200 |
NX-250 |
| Capacity (Ton) | 25T | 35T | 60T | 80T | 110T | 160T | 200T | 250T |
| Stroke Length Fixed (mm) | 60 | 70 | 80 | 100 | 125 | 150 | 150 | 150 |
| Speed Fixed (Per Minute) | 70 | 60 | 60 | 50 | 50 | 50 | 40 | 40 |
| Speed Variable (Per Minute) | 50-70 | 40-65 | 40-65 | 40-60 | 40-60 | 35-55 | 30-45 | 30-45 |
| Bolster Area (mm) (ExF) | 600X350 | 700X400 | 900X500 | 1000X550 | 1150X650 | 1250X750 | 1400X800 | 1500X850 |
| Shut Height / Die Height (mm) | 240 | 280 | 350 | 370 | 400 | 450 | 500 | 500 |
| Slide Plate Area (mm) (PxQ) | 300X200 | 350X250 | 500X400 | 560X460 | 650X500 | 720X580 | 800X650 | 900X700 |
| Slide Adjustable (mm) | 50 | 50 | 70 | 70 | 80 | 100 | 120 | 130 |
| Tool Bore (Dia x Depth) (mm) | Ø32x45 | Ø44x50 | Ø50x65 | Ø50x65 | Ø60x75 | Ø60x75 | Ø75x90 | Ø75x90 |
| Main Motor (HP/RPM) | 3/1440 | 3/1440 | 7.5/1440 | 10/1440 | 10/1440 | 15/1440 | 20/1440 | 25/1440 |
| Floor To Top Bolster (mm) | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
