NEXUS SERIES (PNEUMATIC CLUTCH) POWER PRESSES
- Home
- NEXUS Series

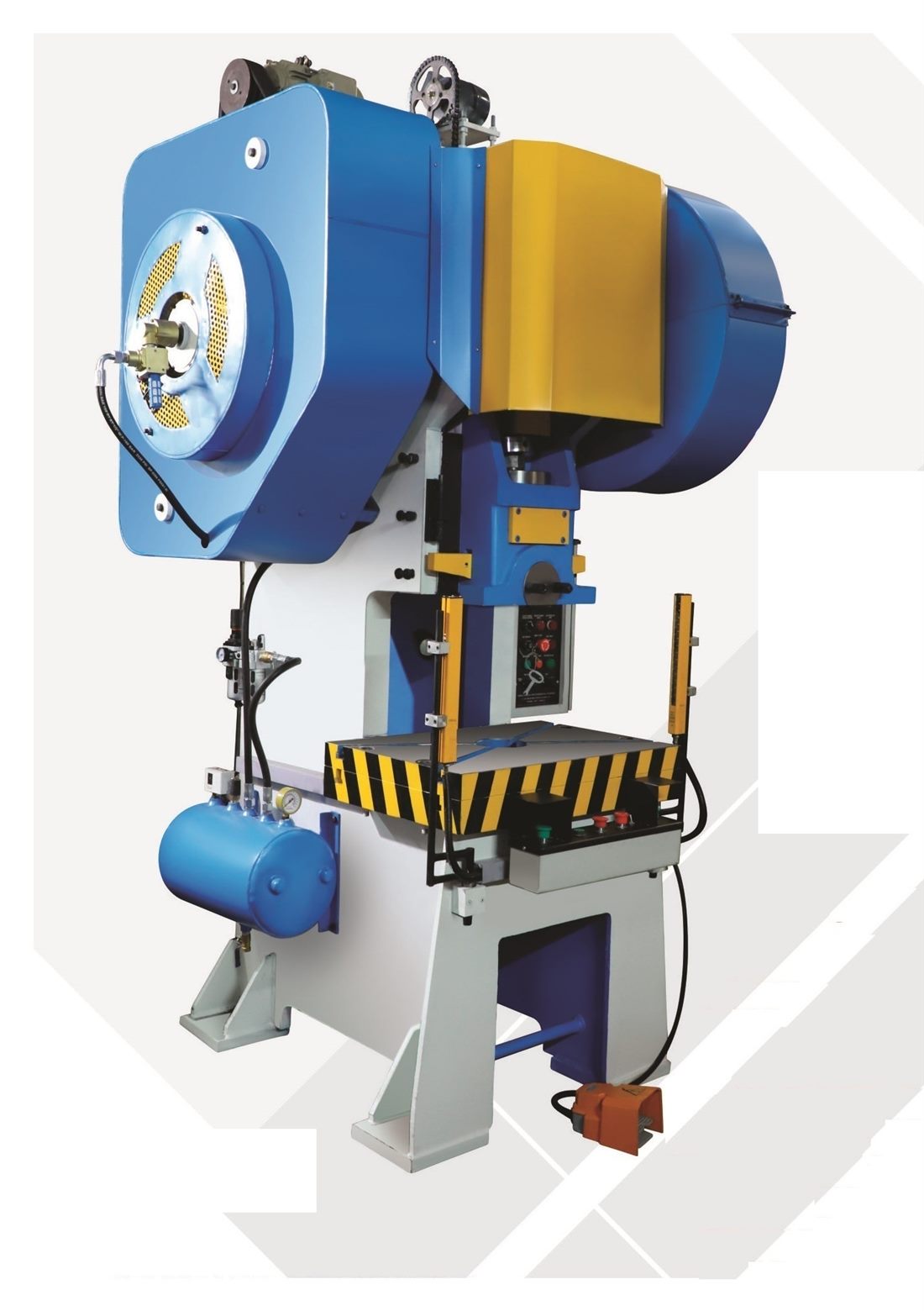

- NX-25 Ton
| Property | Value |
|---|---|
| Capacity | 25 Ton |
| Stroke Length Fixed | 60 mm |
| Speed Fixed (Per Minute) | 70 |
| Speed Variable (Per Minute) | 50–70 |
| Bolster Area (ExF) | 600 × 350 mm |
| Shut Height / Die Height (DH) | 240 mm |
| Slide Plate Area (PxQ) | 300 × 200 mm |
| Slide Adjustable | 50 mm |
| Tool Bore (Dia × Depth) | Ø32 × 45 mm |
| Main Motor (HP / RPM) | 3 / 1440 |
| Floor To Top Bolster (N) | 800 mm |
| Die Cushion Force (Optional) | 5 Ton |
| Die Cushion Area (Optional) | 220 × 220 mm |
| Die Cushion Stroke (Optional) | 65 mm |
